جزئیات محصول:
پرداخت:
|
| محدوده نیرو: | بالا: 0-10KN | سرعت زور: | 0.1-50mm/s |
|---|---|---|---|
| زمان نیروی ثابت: | 0-9999S | روش بارگذاری: | برقی |
| روش عملیات: | کنترل PLC و صفحه نمایش لمسی | محدوده متحرک: | 3 تا 8 درجه آزادی |
| منبع تغذیه: | AC220V/50HZ | ابعاد: | W3300*D2000*H2550mm |
| برجسته: | IEC61851-1 Electric Vehicle Testing Equipment,Conductive Charging Vehicle Testing Equipment,Conductive Charging Vehicle Testing Equipment |
||

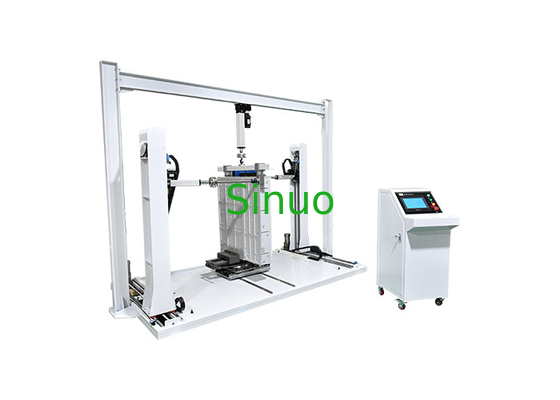

IEC61851-1 EV Conductive Charging System Static Load Test Bench
Product Information For Static Load Test Bench:
Comply with the standards and clauses of EN IEC 61851-1-2019, IEC 61851-1-2017. Used for mechanical strength test of electric vehicle charging piles and similar power supply equipment shells for charging vehicles
Test principle: Drive the electric cylinder through the servo motor to apply a certain force value to the top and side of the sample according to the standard requirements and keep it constant for a certain time to verify its mechanical strength
Structure and features: The machine adopt a frame structure, which is divided into a horizontal loading part and a vertical loading part. Each loading actuator can move freely in the plane with 3 degrees of freedom. The 3 actuators realize the mobile loading with 8 degrees of freedom in total.
Technical Parameters For Static Load Test Bench:
| Operation method | PLC control and touch screen operation |
| Drive | Servo motor |
| Test items |
1. Static load test on the top (0-10kn) 2. Lateral thrust test (0-1500N), two positions |
| Loading direction | Horizontal 2-way, vertical 1-way (divided into horizontal loading part and vertical loading part. Each loading actuator can move freely in the plane, which is 3 degrees of freedom. 3 actuators achieve 8 degrees of freedom in total mobile loading) |
| Movable range | 3 to 8 degrees of freedom |
| Loading method | Electric |
| Range of force |
Top: 0-10KN Side: 0-1500N |
| Speed of force | 0.1-50mm/s |
| Constant force time | 0-9999s, can be preset |
| Power supply | AC220V/50Hz |
| Way of moving | Electric steel ball screw + precision linear guide rail adjustment mechanism |
| Use environment | Dimensions: about W3300*D2000*h2550mm. Weight: about 450kg |
