IEC 60529 IPX3 IPX4 Waterproof Test System Oscillating Tube Rain Test Equipment

مقدار تولیدی:	1
قیمت:	Customized
بسته بندی استاندارد:	تخته سه لا
دوره تحویل:	30 روز
روش پرداخت:	t/t
ظرفیت تامین:	10 مجموعه در هر ماه

جزئیات اطلاعات

توضیحات محصول

جزئیات اطلاعات

محل منبع

نام تجاری

Sinuo

گواهی

Calibration Certificate (Cost Additional)

شماره مدل

SN444

باران سرعت IPX3:

4S/TIME (120 20 درجه)

سرعت باران IPX4:

12s/زمان (360 × 2)

زاویه نوسان:

حداکثر 175 درجه

نرخ جریان آب:

＞ 10 لیتر در دقیقه ± 5٪

زمان آزمون:

1-99999s

0 تا 0.25 مگا پاسکال

سوراخ سوزن:

Φ0.4 میلی متر

جریان آب:

می توان تنظیم کرد

توضیحات محصول

IEC 60529 IPX3 IPX4 Waterproof Test System Oscillating Tube Rain Test Equipment

Standards Compliance

Designed and manufactured according to IEC60529:2013, this test system is used to evaluate the IPX3 and IPX4 waterproof protection levels of electrical and electronic products. It ensures compliance with international waterproof testing standards for safety and reliability verification.

Application

The IPX3~4 oscillating tube waterproof test system simulates rain and water spray conditions to check the resistance of products against splashing and spraying water. It is widely applied in household appliances, lighting products, electronic devices, automotive components, and other electrical equipment.

System Composition

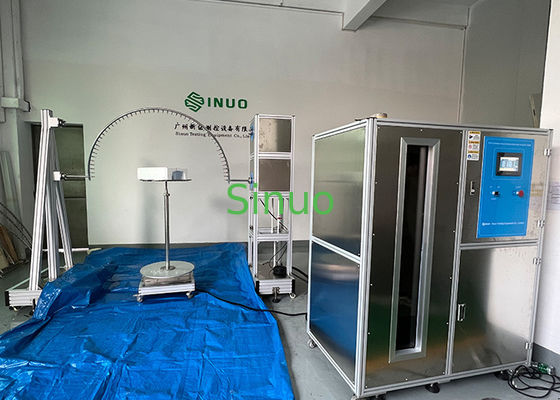

Oscillating Tube Swing Device: Provides accurate swinging motion to simulate rain exposure.
Full Set of Oscillating Tubes: R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm, adaptable for different sample sizes.
Turntable: Rotates test samples to ensure uniform water exposure.
Intelligent Water Supply & Control Cabinet: Includes water supply tank, pump, and control system.

Control System

The intelligent water supply system is controlled by a PLC, frequency converter, and flow meter, ensuring stable and precise water flow. This enables accurate and repeatable waterproof testing according to IEC standards.

Key Features

Fully compliant with IEC60529 IPX3/IPX4 waterproof standards.
Wide range of oscillating tubes to accommodate different product sizes.
Programmable control system with PLC and frequency converter for accurate flow regulation.
Intelligent water supply system with real-time monitoring and stable performance.
Robust structure ensuring reliable and repeatable test results.
Suitable for R&D laboratories, quality inspection centers, and manufacturing enterprises.

Technical Parameters:

No.	Item	Parameters
1	Water supply	Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit
2	The size of the oscillating tube	Coming with R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel
3	Needle hole	Φ0.4mm
4	Included angle of two holes	IPX3:120°; IPX4:180°
5	Oscillating tube swing angle	Max. ±175° can be preset (Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved)
6	Raining speed	IPX3:4s/time (2×120°); IPX4:12s/time (2×360°);
7	Water flow	Can be set according to the size of the oscillating and the number of the pin holes (0.07 L/minX per hole)
8	Testing time	1-99999S can be preset
9	Pressure gauge	0~0.25MPa
10	Turntable	Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs
11	Site requirements	Dedicated IP waterproof test room, the ground should be flat with illumination. 10A waterproof leakage switch (or socket) used for equipment. With good function of inflow and drainage. Ground installation.
12	Electrical control	PLC & touch screen
13	Power supply for this equipment	Single phase AC 220V, 60Hz, 2KW
14	Power supply for sample	Single phase AC0~220V, 0~16A
